Introduction
Our standard Stainless Steel Reactor is a cornerstone of reliability and versatility for countless industrial processes. Built to withstand corrosive environments, high temperatures, and significant pressure, this reactor serves as an essential vessel for reaction, evaporation, synthesis, mixing, and dispersion tasks across diverse sectors like chemical manufacturing, paint and coating production, adhesive compounding, and food processing. Its straightforward design, coupled with robust construction, makes it an ideal workhorse for both batch production and pilot-scale development.
Image 1, 5L-200L Stainless steel reactor
Core Features & Benefits
Exceptional Material Durability: Fabricated from 304 or 316 stainless steel, the reactor body provides outstanding resistance to corrosion, oxidation, and degradation from strong acids, alkalis, and various aggressive chemical agents, guaranteeing a long operational lifespan and minimal maintenance.
Comprehensive Multi-Port Lid: The reactor lid is equipped with multiple standardized ports, allowing for easy integration of feeding mechanisms, thermowells, condensers (reflux), sight glasses for visual monitoring, pressure management devices, and inert gas purging. Custom port configurations are available to fit existing production lines.
Efficient and Reliable Mixing: Equipped with a brushless motor offering frequency control for smooth speed regulation (0-600 rpm). The system ensures high torque and stable operation. Choose from various stirring rod types (A-G, Anchor standard) often featuring PTFE coating on SS316 for chemical inertness and high/low temperature resistance, promoting efficient homogenization and reaction acceleration.
Adaptable to Various Processes: Suitable for operations under pressure (std. max 0.6Mpa) or vacuum (std. max -0.098 Mpa), making it perfect for reactions requiring controlled atmospheres, distillation, or degassing. The screw-press type lid seal with fluorine rubber gasket ensures a tight closure.
User-Friendly Operation: Features an intuitive controller with an LCD display for real-time monitoring and adjustment of agitation speed and temperature (with appropriate accessories). Designed for operational simplicity and safety.
Scalable Solutions: Available in a wide range of standard capacities from compact 5L lab units to large 200L production models, allowing for process scale-up with consistent performance.
Image 2, Stainless steel reactor Structure
Technical Specifications Table
|
Model |
SR-5L/10L |
SR-20L |
SR-30L |
SR-50L |
SR-100L |
SR-150L |
SR-200L |
|
Capacity |
5L/10L |
20L |
30L |
50L |
100L |
150L |
200L |
|
Material quality |
304 stainless steel /316 stainless steel optional |
||||||
|
Thickness |
Inner lining: 4mm, outer casing: 4mm(can be customized according to pressure) |
||||||
|
Motor power |
Frequency control 120w (customizable) |
Frequency control 200w |
Frequency control 400w |
Frequency control 750w |
|||
|
Speed |
0~600rpm |
||||||
|
Controller |
Speed adjustment, temperature and speed LCD digital display |
||||||
|
Voltage |
220V/50HZ |
||||||
|
Working pressure |
The maximum positive pressure is 0.6Mpa (Customizable) |
||||||
|
Sealing of kettle cover |
Fluorine rubber pad seal,screw press type |
||||||
|
Vacuum sealing |
The maximum negative pressure is -0.098 Mpa |
||||||
|
Stirring port |
32Φ |
59Φ |
79Φ |
||||
|
Solid feeding port |
55Φ |
75Φ |
133Φ |
||||
|
Light port |
38Φ |
55Φ |
75Φ |
||||
|
Reflux port |
38Φ |
||||||
|
Constant pressuredrop funnel port |
25Φ |
||||||
|
Temperature port |
19Φ |
||||||
|
Pressure relief port |
4 points loose joint |
||||||
|
Nitrogen port |
4 points |
||||||
|
Stirrer diameter |
12Φ |
20Φ |
35Φ |
||||
|
Stiring seal |
Mechanical seal/magnetic coupling seal is optional |
||||||
|

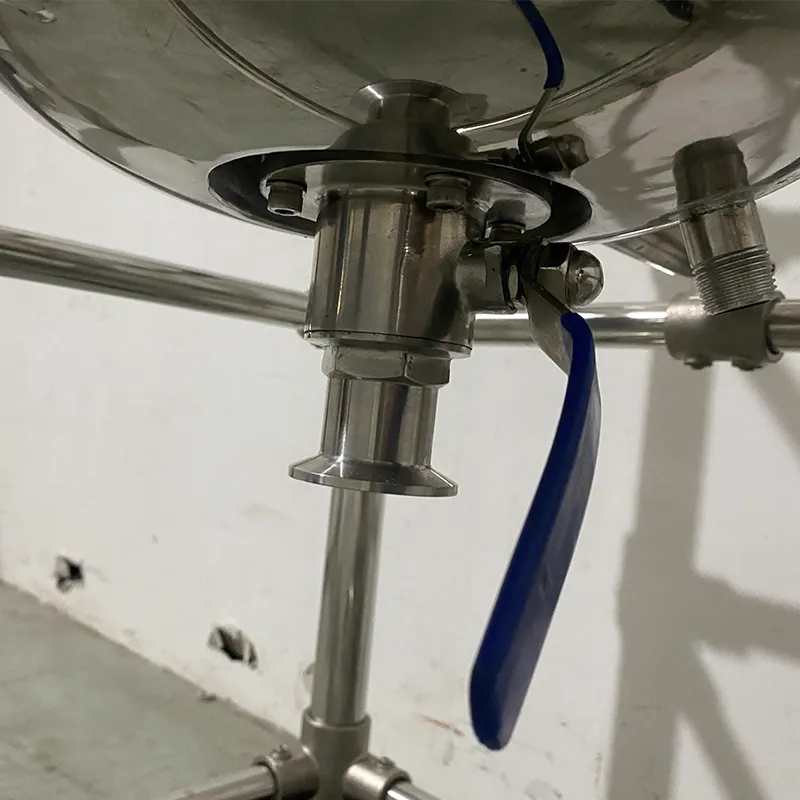

Discharging valve |
DN38 ball valve |
DN50 ball valve |
|||||
|
Stirrer |
Anchor style(other shapes are available) |
||||||
|
lnlet/outlet oil port |
DN20 male thread(customized) |
||||||
|
The above data can be customized on demand |
|||||||
Note: Port sizes, agitator styles, and additional features are customizable based on application requirements.
Interested in a reactor with similar capabilities for your lab? [Speak to an Engineer]
Image 3, Stainless steel reactor impreller
Image 4, Customized Stainless steel reactor
Common Applications
Widely used for:
Chemical Reactions & Compound Synthesis
Paint, Ink, and Coady Manufacturing
Hot Melt Adhesive Production
Silicone and Sealant Processing
Food Grade Mixing and Reaction
Saponification and Esterification
Petrochemical Additive Blending
