Crystallization Reactor CGR-5L to 100L - ISO Certified for Pharma & Biotech
What is a CBD Crystallization Reactor
Rich Smart CGR series CBD crystallization reactor integrates crystallization, filtration, solvent recovery and concentration in a closed system. Made of high borosilicate glass, it is engineered for lab-scale experimentation, pilot testing and industrial production in fine chemical synthesis, biopharmaceutical R&D and CBD manufacturing. ISO-certified, corrosion-resistant and easy to operate, it is the ultimate reaction toolkit for purity and process efficiency.
Request a Free Quote | Live Demo
The Feature of CBD Crystallization Reactor
1. Optional filter plate, pore size from 10-16μm to 160-250μm
2. Number of ports on the lid: 4-5
3. Corrosion-resistant sealing ring and quick release clip
4. PTFE foot valve with no dead angle design
5. Jacket interface can match different heaters and chillers
6. PTFE paddle or glass paddle for customers to choose
7. Stainless steel bracket system, easy to disassemble
8. Customized services according to customer needs
9. Crystallization Reactor with Solvent Recovery System
Customize Your CBD Crystallization Reactor
,
CBD Glass Crystallization Reactor Technical Data
|
Model |
CGR-5L |
CGR-10L |
CGR-20L |
CGR-30L |
CGR-50L |
CGR-80L |
CGR-100L |
|
Electrical Requirements |
110/220V, 60Hz 1‐PH |
110/220V, 50/60Hz 1‐PH |
|||||
|
Standard Stirring Motor Power |
120W |
200W |
|||||
|
Rotation Controller |
Digital controller with variable frequency drive, 600 rpm |
||||||
|
Agitator Type |
Anchor Design, 304 Stainless Steel Reinforced with PTFE Coating |
||||||
| CBD crystallization reactor |
Glass Sand Core Filter |
||||||
|
Reaction Vessel Capacity |
5L |
10L |
20L |
30L |
50L |
80L |
100L |
|
Liquid Collection Vessel |
5L |
10L |
20L |
30L |
50L |
80L |
100L |
|
Jacket Capacity |
2L |
3L |
6L |
10L |
16L |
24L |
30L |
|
Filter Pore Size |
20~40μm |
40~80μm |
40~80μm |
40~80μm |
40~80μm |
40~80μm |
40~80μm |
|
Glass Vessel Temperature Range |
-120℃~250℃ |
||||||
|
Inner Vessel Pressure |
Under 0.098Mpa |
||||||
|
Installation Dimension (W*D*H) |
800*400*1400 |
1000*600*2030 |
1150*650*2150 |
1150*650*2450 |
1150*650*2450 |
1250*700*2550 |
1250*700*2550 |
Our Equipment details show
 |
 |
 |

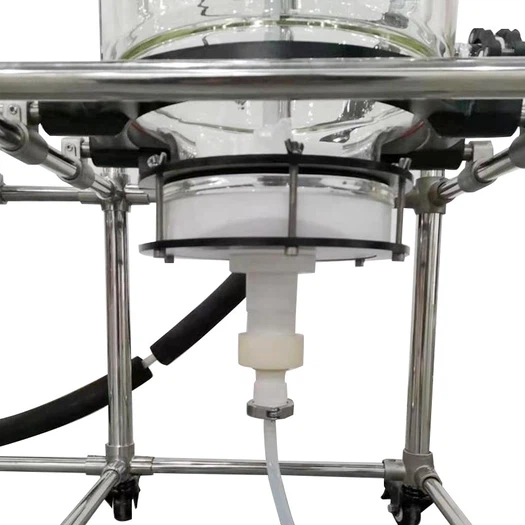

| PTFE stirring blade | Removable filter plate | High-quality stainless steel pagoda connector |
Ideal for Diverse Industrial & Lab Scenarios
CBD Manufacturing - Precise crystallization for high-purity CBD extraction and purification.
Pharmaceutical R&D - GMP-compliant reactions for drug synthesis and polymorph control.
Fine Chemical Synthesis - Stable crystallization for specialty chemicals and intermediates.
Biotechnology - Contamination-free reactions for biopharmaceutical production.
Academic Research - Lab-scale experimentation for university and research institute projects.
Customer Testimonials for Crystallization Reactor
Dr. Lee, PharmaTech Labs
"Cut crystallization time by 30% with precise temperature control. Reliable for GMP compliance!"👍👍👍👍👍
Chem Works Inc.
*"Zero cross-contamination in 500+ batches. Self-cleaning system saves 15hrs/week!"*👍👍👍👍
Dr. Elena, MIT Research
*"Perfect polymorph control. Published 3 papers using its high-resolution data."*👍👍👍👍
GreenChem Solutions
*"Reduced solvent waste by 50% and energy costs by 20%. Eco-friendly champion!"*👍👍👍👍👍
AgroProcess Ltd.
👍👍👍👍👍*"24/7 support fixed issues in 2hrs. ROI achieved in 6 months. Exceptional!"*
20 Liter Rotovap |
||
| Related products in CBD crystallazation | ||
Why Choose Rich Smart for Your CBD Crystallization Reactor?
- ISO Certified Manufacturing & GMP Compliance
- 5L-100L Customizable Capacity for Lab/Industrial Use
- Global After-Sales Service (On-site Installation & Training)
- 1 Year Warranty & 24/7 Technical Support
- Export to 30+ Countries for Pharma & Biotech Industries
About us CBD Crystallization Reactor with filtration
Xi'an Rich Smart Technology Co., Ltd, a leading manufacturer in China, specializes in high-performance crystallization reactors for pharmaceuticals, chemicals, and R&D. Combining innovation with precision engineering, we deliver ISO-certified solutions trusted by global labs and industries. Committed to quality, efficiency, and customer success.
