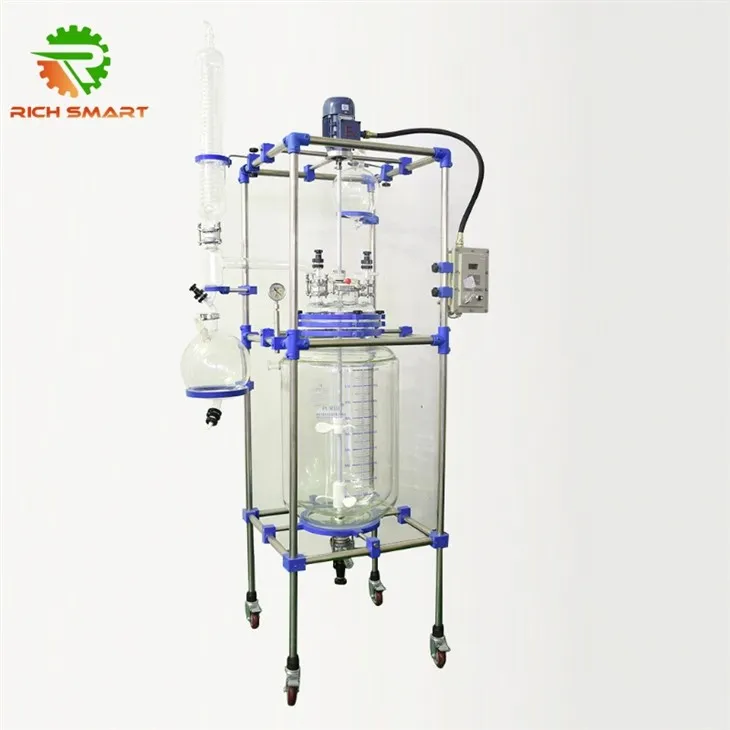

What Is a 200L Double Jacketed Glass Reactor:
200L double layer glass reactor (also named 200L jacket glass reactor) is a pilot‑scale reaction system built with GG‑17 high borosilicate glass. It features an inner reaction tank and an outer jacket for circulating heating or cooling fluid, enabling stable, visual reactions under precise temperature and vacuum conditions. It is widely used in pharmaceutical synthesis, chemical processing, and material development.
Key Features of 200L Jacketed Glass Reactor
Premium GG‑17 Borosilicate Glass: Excellent chemical resistance, thermal stability from ‑80℃ to 250℃, resistant to cracking and corrosion.
304/316L Stainless Steel Frame or customized titanium alloy frame: Anti‑corrosive, sturdy, and easy to clean.
Precise Thermal Control: Integrated PT100 sensor with ±1℃ accuracy, compatible with heating/cooling circulators.
Powerful Stirring System: 50–600 RPM adjustable speed, suitable for high‑viscosity materials, with PTFE seals for long service life.
High Vacuum Performance: Up to 0.098 MPa vacuum for distillation, reflux, and solvent recovery.
Explosion‑Proof Options: EX-proof or ATEX‑compliant motors and safety parts for hazardous environments.
Standard 6‑Port Lid or customized ports base on users' needs: Flexible connection with condenser, feeding funnel, thermometer, and vacuum components.
Technical Specifications
|
Product Model |
GLR-150 |
GLR--200 |
|
Volume(L) |
150 |
200 |
|
Neck No.on Cover |
6 |
6 |
|
Diameter of Inner Vessel(mm) |
550 |
600 |
|
Diameter of Outer Vessel(mm) |
600 |
650 |
|
Cover Diameter(mm) |
340 |
340 |
|
Vessel Height(mm) |
980 |
1200 |
|
Motor Power(W) |
750 |
750 |
|
Vacuum Degree(Mpa) |
0.098 |
0.098 |
|
Rotation Speed(rpm) |
50-600 |
50-600 |
|
Torque(Nm) |
11.90 |
11.90 |
|
Power (V) |
220 |
220 |
|
Dimension(mm) |
1200*900*3000 |
1200*900*3200 |
Industry Applications
Pharmaceutical: API synthesis, crystallization, solvent recovery, pilot formulation.
Chemical Industry: Polymerization, catalytic reactions, distillation, purification.
Biotechnology: Fermentation, cell culture, bio‑based material preparation.
Food & Cosmetics: Essential oil extraction, emulsification, pilot‑scale processing.
Why Choose Richmart 200L Jacketed Glass Reactor?
Stable Scale‑Up: Consistent parameters from lab to pilot and small production.
High Safety: Meets international explosion‑proof and electrical safety standards.
Low Maintenance: PTFE sealing and bottom draining design reduce downtime.
Customizable: Stirrer type, ports, cooling coils, distillation column and control systems tailored to your process.
Global Service: Full technical support, on‑site commissioning, and worldwide shipping.
Contact Us right now
Optimize your processes and contact us for a 200L jacket glass reactor specially for you now!
