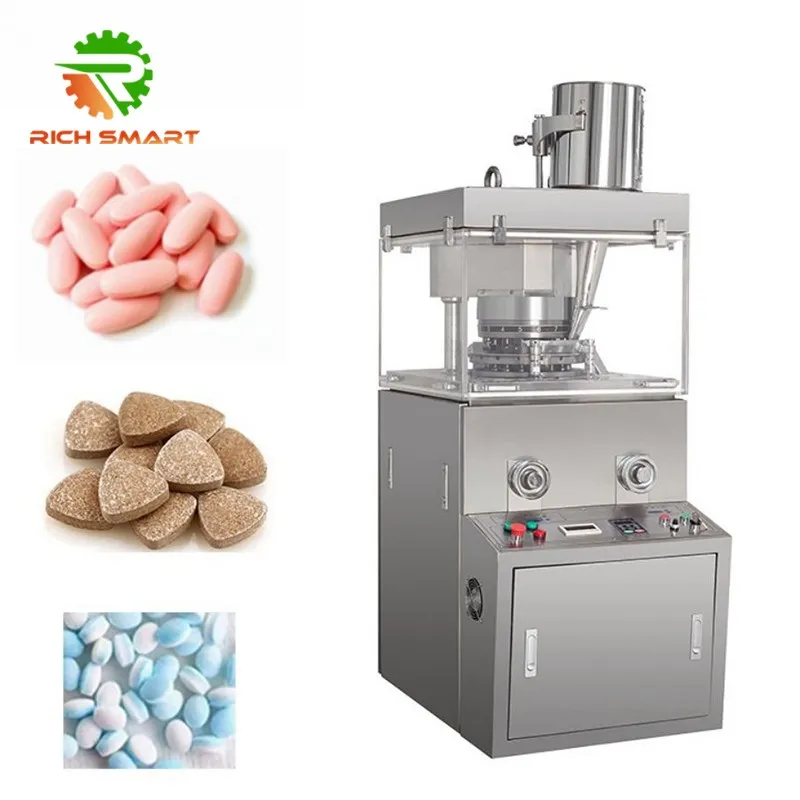

This Medium speed Rotary tablet machine is used to press dry powder materials into kinds of tablets, which is most suitable for medium batch production.
It is mainly used in the pharmaceutical industry, and can also be used in chemical, food, electronics and other industries.
Feature of Medium speed Rotary tablet machine
- The Medium Speed Rotary Tablet Machine is with high pressure, easy operation and maintenance.
- This machine can press special-shaped pharmaceutical tablets, various sizes health care tablets, etc.
- The machine has stable tablet weight and sensitive adjustment.
- The tablet tablet press has high precision and stable operation.
- The Medium Speed Rotary Tablet Machine is equipped with a spring pressure overload protection device, with the alarm light prompts, and the intelligent automaticlly stop.
- The eccentric torque protects the die and the machine, and the response speed is fast.
The design highlights of Medium speed Rotary tablet machine
1.The 10 inch color touch screen with smart structure.
2.Double sided pressing with the maximum capacity being 350000 tablets per hour
3.Offering max main pressing capability of 100kN and pre compression of 30 kN.
4.Tablet thickness and filling amount are controlled on the touch screen automaticlly.
5.It can reject unqualified tablets in the start and stop stage.
6.It has function of material shortage alarm.
7.Comply with GMP, compact construction,easy to operate,clean and maintain.
9.HMI,displays tablet pressing process and filling depth control.
10.Auto central lubfication system,ensures a precise and reliable oil supply control.
11.The force feeder is easy to assemble and disassemble
Parameter of Medium speed Rotary tablet machine
|
Model |
ZPWE-5 |
ZPWE-7 |
ZPWE-9 |
|
Dies |
5 |
7 |
9 |
|
Max. Pressure(KN) |
60 |
60 |
60 |
|
Max. Tablet Dia.(mm) |
15 |
15 |
15 |
|
Max. Filling Depth(mm) |
15 |
15 |
15 |
|
Max. Thickness(mm) |
6 |
6 |
6 |
|
Output Capacity (pcs/h) |
9000 |
13000 |
17000 |
|
Power(KW) |
2.2 |
2.2 |
2.2 |
|
Overall Dimensions(mm) |
480×630×1100 |
480×630×1100 |
480×630×1100 |
|
Weight(KG) |
260 |
260 |
260 |
Application
What should you consider when choosing a suitable tablet press?
1. Tablet pressing method: There are different tablet pressing methods, such as, single punching, double punching, continuous tablet pressing, etc. Different tablet pressing methods can impact on the efficiency and quality of tablet pressing . You can choose the suitable pressing methods according to your requirements.
2. Tablet size: Different tablet presses machine have different tablet size restrictions. and some can be adjusted the tablet size. You can choose the suitable machine according to your requirements.
3. Lubrication method: Common lubrication methods include dry lubrication and wet lubrication. The dry lubrication method requires the tablet pressing parts to have a smooth surface, while the wet lubrication method requires the addition of a certain amount of lubricant. You can choose the suitable Lubrication method according to your requirements.
4.Control method: The tablet press machine has manual control and automatic control way. Manual control requires operators to monitor and control in real time,The automatic control achieves automated production through preset programs. You can choose the suitable machine according to your budgets.

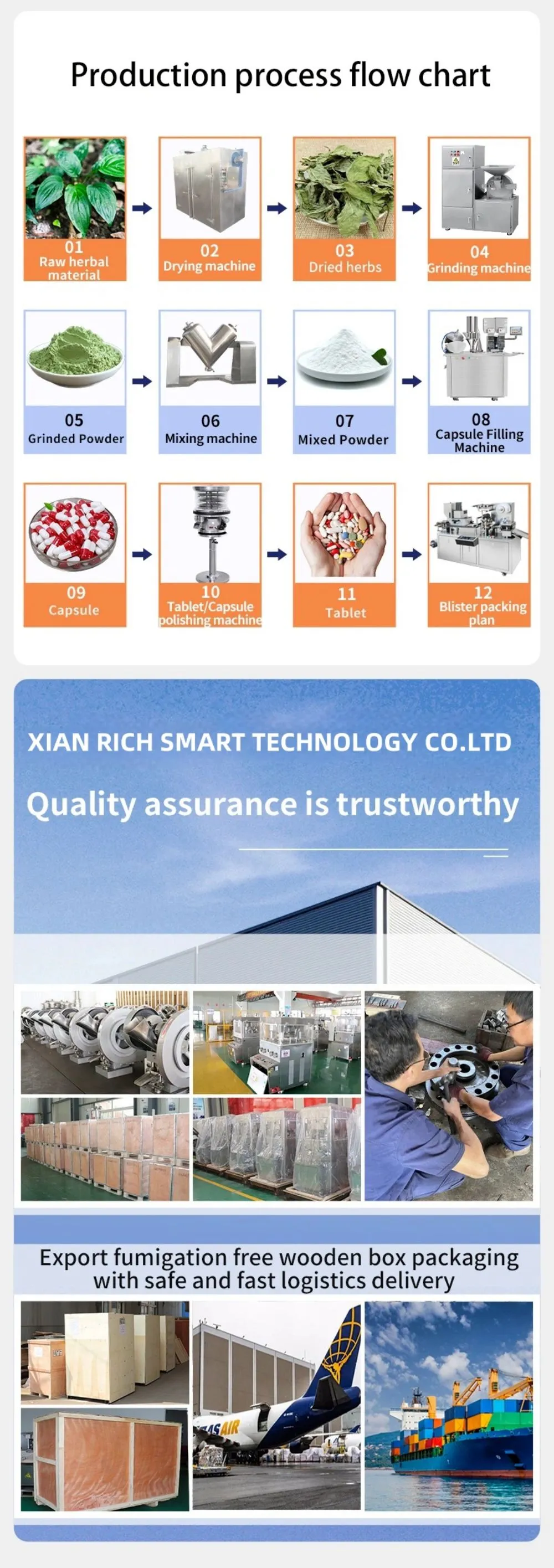

Equipment produce process
Our certificates
What we can do ?
Customer together
