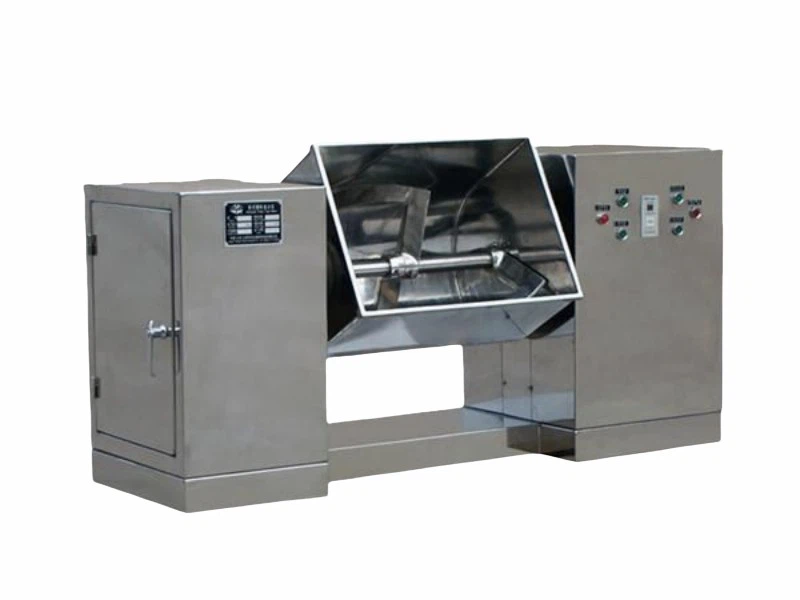

CH Industrial Tough Powder Mixing Equipment



The CH Industrial Tough powder mixing equipment uses stirring blades to rotate and stir the powdered or wet materials.
The main and auxiliary materials in different proportions are mixed evenly, and the materials will not dissolve or volatilize during the mixing process.
The equipment can quickly cool the materials that have completed the hot mixing process,And also can remove the residual gas in the hot mixed materials, which is convenient for the storage, transportation and subsequent processing of the materials.

1. The contact part is made of stainless steel, which has good corrosion resistance.

2. The mixing tank can automatically flip and pour materials, and the mixing time can be adjusted.

3. It is very convenient to operate, easy to clean and maintain, and meets the GMP requirements.

4. The gap between the blade and the barrel is small, and there is no dead angle in mixing.

5. Sealing devices are provided at both ends of the stirring shaft to prevent the material from leaking out.

6. The hopper adopts button point control, which is convenient for discharging, especially suitable for mixing materials with high uniformity requirements ,or big material specific gravity differences.

7. CH Industrial Tough powder mixing equipment has compact structure, beautiful appearance and small footprint.

1. Mixing reducer

This reducer is the main transmission structure of the mixer. It can output strong torque during operation to make the materials mixed evenly.

2. Mixing hopper
The mixing hopper is a tank-shaped body made of qualitied stainless steel, with a stirring paddle inside.

3. Pour-out reducer
The pouring reducer is to control the positioning angle of the mixing hopper. When working, the motor installed in the machine base drives the worm and worm gear through the V-belt to drive the mixing tank to rotate within a certain angle range, so that the mixed material can be poured out at one time.

4. Machine base and motor device
The machine base is an integral structure. The motor is installed on the movable plates on both sides of the machine base. The upper and lower parts of the motor can be adjusted with screws .This can make the V-belt have a certain tightness to maintain the transmission force.

5. Electrical control box
The control box is located on the right side of the machine. The transmission of the mixing hopper can be controlled by pressing the mixing tank "up" and "down" buttons. Note that the two buttons cannot be pressed at the same time.

As a leading CH Industrial Tough Powder Mixing Equipment manufacturer and supplier,Xi'an Rich Smart Tech specializes in deleloping high-quality powder mixing solutions to meet customers' requirements. We are pround of being a reliable Powder Mixing Equipment factory, equipped with skilled team to ensure superior product performance.

We also provide the competitive price for CH Industrial Tough Powder Mixing Equipment, As a well-known manufacturer, we hope that customers from more industries and fields can use our Powder Mixing Equipment to save costs, increase benefits, and thus contribute to a better life for people.

Choose Xi'an Rich Smart Tech for innovative Powder Mixing solutions, exceptional manufacturing expertise, and dedicated customer support. Partner with us to experience the perfect blend of quality, customization, and value.

1.The capacity range is 0.1-8 cubic meters, select equipment of corresponding specifications.
2.Determine the volume of materials mixed in each batch.
3.Select the material for equipment manufacturing, such as contact material,the noncontact the material. Consider to save cost of equipment.(The material is determined by factors such as material properties, working conditions, and hygiene level. Conventional 304/316L stainless steel is available)
4.After the material is selected, please confirm the surface treatment requirements of equipment (base on your production process).
5.Determine the driving capacity of the configuration (according to the specific gravity, fluidity and other properties of your material, as well as the starting standard)
6.Please confirm if add auxiliary function components? such as liquid spraying, heating/cooling, etc (According to the actual process conditions).
7.Design the ports of the equipment, such as the feeding port, the discharging port, etc.
8.Select the discharging mode , such as, manual discharge, pneumaticdischarge, and electric discharge.
Important tips: The selection of equipment is a important. It would be better if you can provide detailed information on the material and the process arrangement ,so that our company's professionals can provide you excellent technical services
