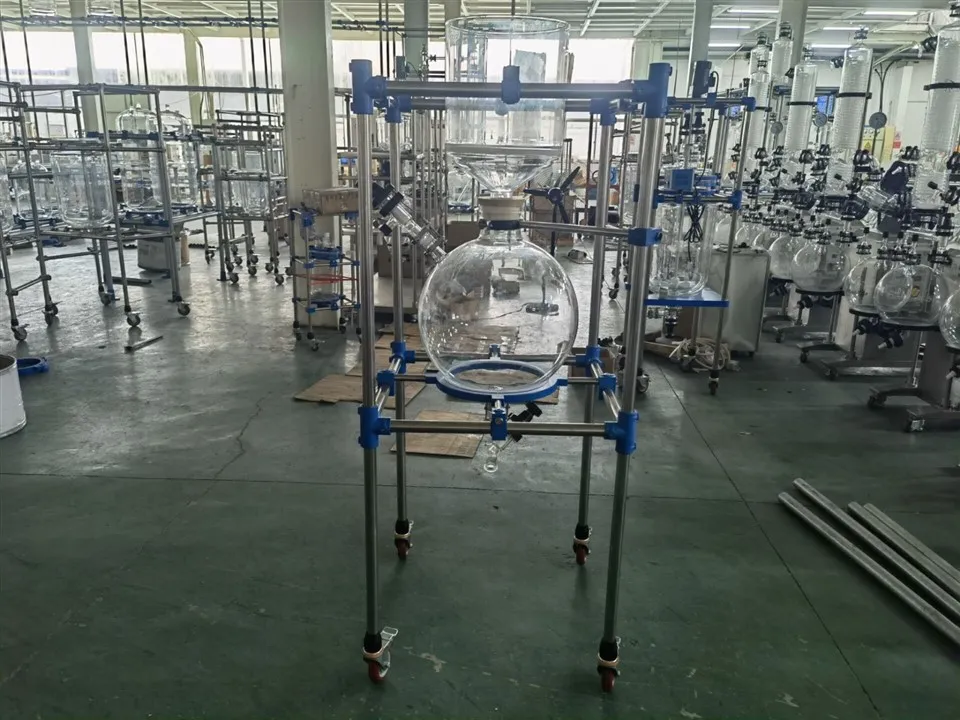

Customized Vacuum Filter
Rich Smart Tech Vacuum filter is very strong and quality filtration for your lab or production. It can be used for separating liquid-solid , in chemical, food and Pharmaceutical industry.
The structure of vacuum filter:
The VF series filter have a stainless steel funnel receiving flask,vacuum port,discharge valve.
Contact the vacuum port to a vacuum pump then put filter bags or filter papers into the top funnel can start fluid filtration.
Features and Benefits
1.High quality borosilicate glass 3.3 with excellent physical and chemical properties for glass parts and SUS 304 stainless steel frame.
2.Perfect sealing property and no dead corner design for charging solution or powder more easily.
3.One vacuum valves for connecting vacuum pump for processing vacuum filtration.
4. Cost-saving modular design and can be customized by clients'requirements.
5. Safe in operation, easy to move around with lockable casters.
Datasheet of customized vacuum filter
|
Products & Model |
Specification list |
|
Pour Type Stainless Steel Vacuum Filter 50L RS-VF50LS
|
1. Funnel Capacity: 50L ( stainless steel material) 2. Collection bottle: 50L (glass flask with discharge valve) 3. Material: SS304 funnel + glass collection flask + SS304 support frame 4. With opening for connecting vacuum pump 5. With four wheels for stand. 6. with stainless steel filter plate 7. Not include Vacuum pump More details, pls refer below diagram
|
|
Pour Type Stainless Steel Vacuum Filter 100L RS-VF100LS
|
1. Funnel Capacity: 50L ( stainless steel material) 2. Collection bottle: 100L (glass flask with discharge valve) 3. Material: SS304 funnel + glass collection flask + SS304 support frame 4. With opening for connecting vacuum pump 5. With four wheels for stand. 6. with stainless steel filter plate 7. Not include Vacuum pump More details, pls refer below diagram
|
|
Pour Type Glass Vacuum Filter 1 RS-VF10LG
|
1. Funnel Capacity: 10L ( glass material) 2. Collection bottle: 10L (glass flask with discharge valve) 3. Material: glass funnel + glass collection flask + SS304 support frame 4. With opening for connecting vacuum pump 5. With four wheels for stand. 6. With sintered filter (10-15um, G2) 7. Not include Vacuum pump More details, pls refer below diagram
Comments: 1. the glass funnel 10L can max be produced with 200mm diameter. So the funnel height is big. the sand core is sintered, with that 10L funnel, the sand core will meet big load bearing force. So this design will reduce the sand core working life. 3. total height is a bit high, the material poring will be a bit inconvenient. |
|
Pour Type Glass Vacuum Filter 1 RS-VF20LG
|
1. Funnel Capacity: 20L ( glass material) 2. Collection bottle: 20L (glass flask with discharge valve) 3. Material: glass funnel + glass collection flask + SS304 support frame 4. With opening for connecting vacuum pump 5. With four wheels for stand. 6. With sintered filter (10-15um, G2) 7. Not include Vacuum pump More details, pls refer below diagram
Comments: 1. the glass funnel 20L can max be produced with 200mm diameter. So the funnel height is big. the sand core is sintered, with that 20L funnel, the sand core will meet big load bearing force. So this design will reduce the sand core working life. 3. total height is a bit high, the material poring will be a bit inconvenient. |
|
Pour Type Glass Vacuum Filter 1 RS-VF50LG
|
1. Funnel Capacity: 50L ( glass material) 2. Collection bottle: 50L (glass flask with discharge valve) 3. Material: glass funnel + glass collection flask + SS304 support frame 4. With opening for connecting vacuum pump 5. With four wheels for stand. 6. With sintered filter (10-15um, G2) 7. Not include Vacuum pump More details, pls refer below diagram
Comments: 1. the glass funnel 50L can max be produced with 365mm diameter. So the funnel height is big. the sand core is sintered, with that 50L funnel, the sand core will meet big load bearing force. So this design will reduce the sand core working life. 3. total height is a bit high, the material poring will be a bit inconvenient. |
|
Pour Type Glass Vacuum Filter 2 RS-VF50LG
|
1. Funnel Capacity: 50L glass funnel with lid 2. Collection bottle: 50L (glass flask with discharge valve) 3. Material: glass funnel + glass collection flask + SS304 support frame 4. With opening for connecting vacuum pump 5. With four wheels for stand. 6. With replacement filter (10-15um, G2) 7. Not include Vacuum pump More details, pls refer below diagram
Comments: this design is with big cost, but more convenient for operation. 50L glass filter funnel is with lid, can make liquid material feeding with vacuum (suck type feeding) Big feed port during meddle of lid, can also be used for clean port 50L glass filter funnel with lid can reduce material air pollution in lab. 50L glass filter funnel lid can be removed if don't use it (make it pour type). 6. the filter plate can be removed and replaced in future. |
|
Turnkey Packing List |
|
|
Item |
QTY |
|
Vacuum filter |
1 |
|
3 cfm vacuum pump |
1 |
|
rubber vacuum hose |
3m |
|
adapter |
1 |
|
3/8" MJIC to 3/8" Barb |
1 |
|
Qualitative filter paper - 30cm |
1 pack Options |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
