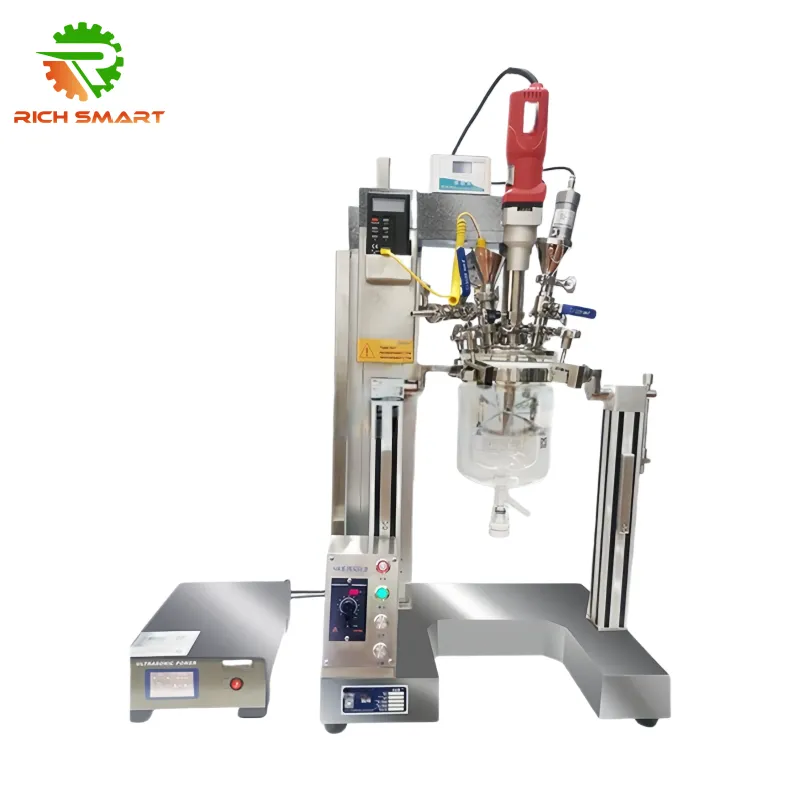

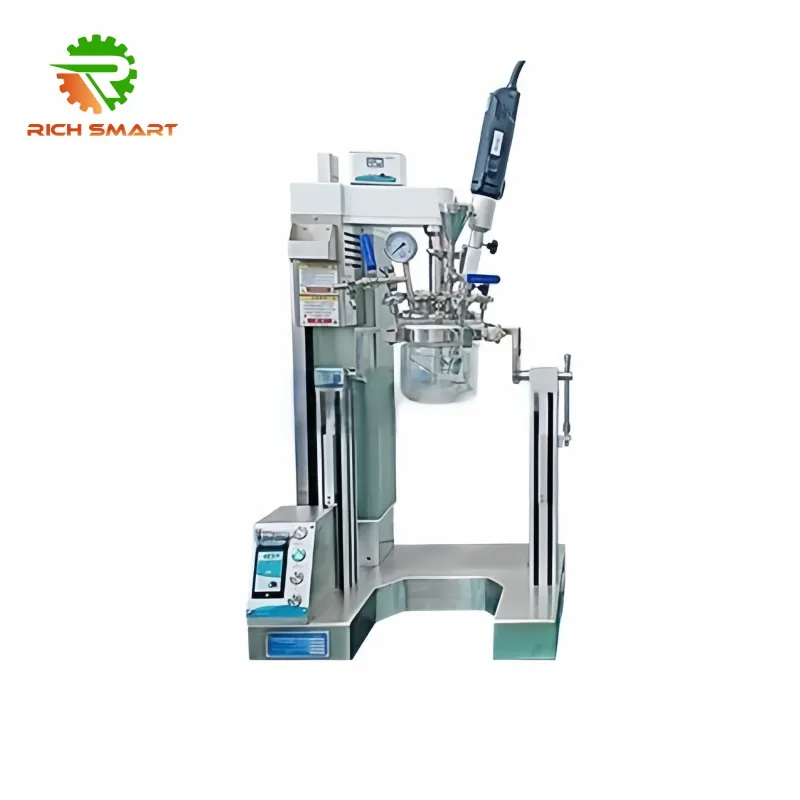

Lab Vacuum Emulsification Reactor

The Lab Vacuum Emulsification Reactor is a state-of-the-art laboratory equipment designed for the precise and efficient emulsification of materials under vacuum conditions. The standard Lab Vacuum Emulsification Reactor has a processing capacity of 0.5L, 1L, 2L, 5L, 10L and other capacity can be customized freely.

Lab RER

The feature of Lab Vacuum Emulsification Reactor

1.The reactor features a robust design with a vacuum-sealed chamber that allows for the removal of air and other gases, ensuring a contamination-free environment.

2.This is particularly important for sensitive processes that require high purity and consistency.

3.The vacuum capability also aids in the removal of bubbles and volatile components, resulting in a smoother and more homogeneous emulsion.

4. Equipped with a high-speed homogenizer and an adjustable stirring mechanism, the Lab Vacuum Emulsification Reactor can handle a wide range of viscosities and achieve uniform particle size distribution.

5.The temperature control system, often including both heating and cooling capabilities, allows for precise regulation of the process conditions, which is essential for optimizing the emulsification process and ensuring repeatable results.

6.Safety features such as pressure sensors, automatic shut-off, and a user-friendly interface make the reactor easy to operate and maintain.

7.The compact design is suitable for laboratory settings, while the scalable technology ensures that processes developed in the lab can be transferred to production with minimal adjustments.

8..The quality glass reactor body can be customized base on your requirements.

Reactor body, mixing, homogenizer system

9.There are many mixing systems can be option

jacketed lab reactor 4

◇Technical Parameter

Model:	RST-1pro	RST-2pro	RST-5pro	RST-10pro
Control mode:	PLC intelligent control (customizable)
Function	Timing, control of mixing system, lifting system
Mini stirring volume:	300ml	500ml	1000ml	3000ml
Min emulsification volume:	500ml	1000ml	2000ml	5000ml
Max allowable processing volume:	1000ml	2000ml	5000ml	100000ml
Max operating temperature:	120° (optional high temperature)
Heating method:	Water bath, oil bath circulation
Vacuum:	-0.096Mpa (optional positive pressure)
Maximum processing viscosity:	70000CP (optional 130000CP ultra-high viscosity)
Mixer power:	120W	120W	180W	180W
Mixer speed:	13~200rpm (ultra-high speed optional)
Paddle configuration:	Anchor-type scraping impeller (ribbon-type optional)
Scraper material:	Silicone rubber (PTFE hard scraping optional)
Emulsification homogenizer power:	500W	500W	1050W	1050W
Emulsification homogenizer speed:	10000~28000rpm		5000~25000rpm
Speed display:	LCD display (digital timing)
Emulsification work head model:	20BCS	20BCS	25BCS	30BCS
Reactor cover opening:	Homogenizer port + feeding port + temperature measuring port + vacuum port + 3 spare ports
Bracket lifting method:	Electric lifting
Bracket lifting formation:	230mm	230mm	280mm	280mm
Contact material material:	SUS316L + PTFE + borosilicate glass Reactor
Reactor body material:	Borosilicate glass reactor (SUS316L stainless steel reactor optional)
Vacuum port outer diameter:	10mm
Interlayer inlet and outlet:	12mm
Outer packaging size:	600400680mm		600400680mm
Weight:	35KG	37KG	40KG	45KG
