GMP Compliant Stoppering Freeze Dryer: Precision for Pharma & Biotech

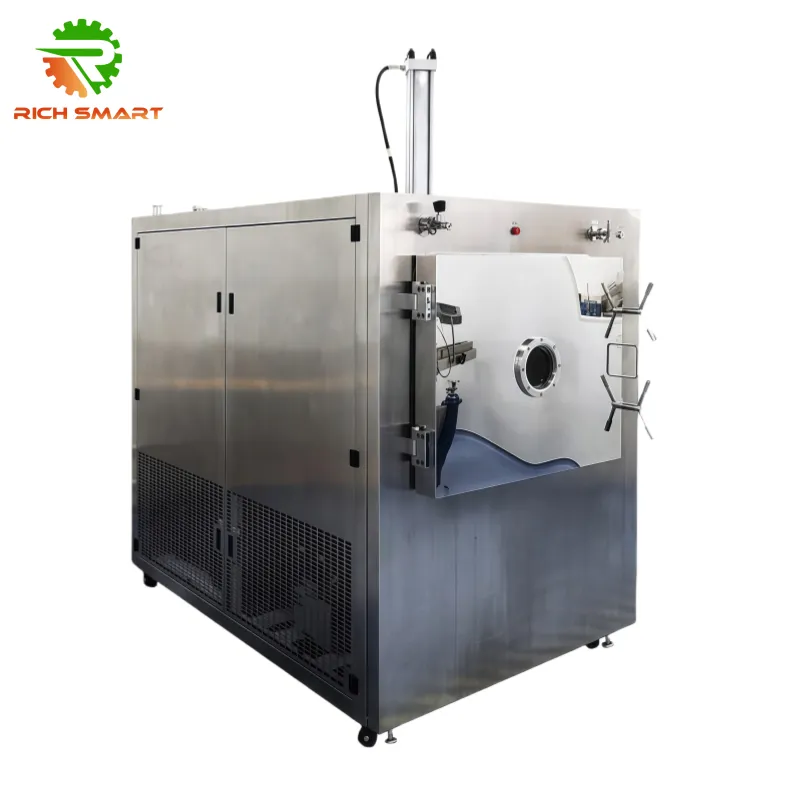

Rich Smart RSY-150GY/200GY stoppering freeze dryer is engineered for flawless lyophilization in pharmaceutical, biotech and high-value food processing. With hydraulic in-chamber stoppering, patented AISI 304 laser-welded shelves and world-class components, it delivers industrial-grade stability, zero contamination risk and scalable throughput-your reliable partner for vaccine, enzyme and gourmet food preservation.
Advanced Freeze-Drying Performance
The RSY-200GY /RSY-150GY isn't just a freeze dryer-it's a GMP-compliant powerhouse engineered for precision, efficiency, and scalability. Designed for pharmaceuticals, biotechnology, and high-value food processing, it combines cutting-edge automation with rugged durability.
Excellence Key Features
⚡ Core Performance Parameters
Drying Area: 1.5m² or 2.16 m² (optimized for high-throughput processing).
Shelf Temp Range: -55℃ to +70℃ ensures uniform drying for all liquid materials
Condenser Power: Reaches ≤ -80°C (empty), capturing 30 kg of ice.
Vacuum Precision: Ultimate vacuum ≤ 1 Pa (industrial-grade stability).
Speed: Achieves 10 Pa from atmosphere in ≤30 mins (dry conditions).
Smart Engineering
Hydraulic Stoppering Technology: Seamless vial capping inside the chamber-eliminating contamination risks.
Patented Shelf Design: AISI 304 stainless steel, laser-welded for flawless heat transfer & cleanability.
and ±0.5 mm/m flatness-perfect for uniform drying.
|
 |
 |
 |
| Stoppering freeze drying chamber | Excellent accessories | Cold trap | Gas inlet |
Why Choose our Stoppering Freeze Dryer
Excellent Brand Components
Refrigeration: Dual Tecumseh (France) compressors (one for shelves, one for condenser).
Vacuum System: Double-stage rotary vane pump + electromagnetic fine-control valves.
Fluid Circulation: Grundfos (Denmark) shielded pump + low-viscosity silicone oil (5cst).
Control System: FD-PILOT (auto/manual) with MCGS touchscreen & PLC logic.
Uncompromising Safety & Compliance
GMP-Aligned: Built to GMP standards and GB/T5226.1-1996.
Safety Ecosystem:
Pressure/heat/vacuum alarms ⚠️
Emergency stop + power-fail safeguards
Sublimation-phase product protection
All-Stainless Construction: AISI 304 chamber, shelves, condenser-corrosion-resistant & SIP/CIP-ready.
RSY-200GY Stoppering Freeze Dryer Technical Parameters Table
|
Parameter |
RSY-150GY | RSY-200GY |
|
Freeze-drying area |
1.51 m2 |
2.16m2 |
|
Layers of shelf |
6+1 |
4+1 |
|
Temperature scope of shelf |
-55℃-+70℃(no-load) |
-55℃-+70℃(no-load) |
|
Shelf spacing |
70mm |
80mm |
|
Size of shelf |
420*600mm |
600*900mm |
|
Min. Temperature of condenser |
≤-75℃(no-load) |
≤-75℃(no-load) |
|
Water-capture capability |
＞22Kg |
30Kg |
|
Liquid material |
15L(Thickness10mm) |
22L(Thickness10mm) |
|
Condenser Type |
Cylindrical (easy defrosting) |
Cylindrical (easy defrosting) |
|
Defrosting |
Electric |
Electric |
|
Cooling |
Intelligent air-cooling system |
Intelligent air-cooling system |
|
Shelf Cooling Rate |
20°C → -40°C in ≤60 mins (empty) |
20°C → -40°C in ≤60 mins (empty) |
|
Noise Level |
≤80 dB |
≤80 dB |
|
Dimensions (L×W×H) |
≈1000*1770*1700mm |
≈1420×2195×2370 mm |
|
Weight |
≈1500 kg |
≈1800 kg |
|
Power |
9KW |
14.5 kW (installed) |
The Smarter GMP freeze dryer Experience
Auto + Manual Control: Switch modes instantly for R&D or production.
Sensor Calibration & Vacuum Control: Fine-tune every cycle.
End-Point Detection: Never over-dry again.
Data Integrity: Supports validation protocols (IQ/OQ/PQ ready).
Professional Designed freeze dryer
The RSY-200GY pharmaceutical lyophilizer is't just equipment-it's your partner in preservation.
From its patented welded shelves to silent Grundfos pumps, every detail minimizes downtime and maximizes output. Whether you're stabilizing vaccines, enzymes, or gourmet coffee, this freeze dryer delivers repeatable, audit-ready perfection.
About US
At Xi'an Rich Smart Technology Co., Ltd., we engineer the future of precision lyophilization. With over 6,000 m² of advanced manufacturing space, a dedicated team of 12+ expert engineers, and rigorous certifications including CE, ISO, and more, we stand at the forefront of freeze-drying technology for global industries.
 |
 |
Why Partner With Us?
🔹 Global Reach, Local Expertise:
We actively showcase innovations at international exhibitions and export to 30+ countries, serving pharmaceuticals, biotech, and gourmet sectors. Our solutions are trusted from Boston to Berlin.
🔹 Engineered for Excellence:
From the award-winning RSY-200GY Stoppering Freeze Dryer to custom systems, we blend patented designs (like our AISI 304 welded shelves) with world-class components (Tecumseh, Grundfos, DANFOSS).
🔹 End-to-End Commitment:
We don't just sell machines-we deliver solutions. Our facility welcomes global clients for live demos, technical workshops, and validation support, ensuring seamless integration and compliance (GMP, GB/T).
🔹 Certified Quality, Sustainable Innovation:
CE and ISO certifications underscore our commitment to safety, efficiency, and eco-friendly tech-like environmental refrigerants and energy-optimized designs.
FAQ
Q: What is the water-capture capability of RSY-200GY?
A: 30Kg (empty chamber), suitable for large-scale lyophilization.
Q: Is the freeze dryer suitable for vaccine production?
A: Yes, it is GMP-compliant with zero contamination hydraulic stoppering, ideal for vaccine stability.
