Hey there! As a supplier of Double Cone Vacuum Dryers, I often get asked about how to control the drying temperature in these machines. It's a crucial aspect of the drying process, as the right temperature can ensure efficient and high - quality drying of your materials. So, let's dive right in and explore this topic.
Understanding the Basics of Double Cone Vacuum Dryers
Before we start talking about temperature control, let's quickly go over what a Double Cone Vacuum Dryer is. It's a type of dryer that uses a double - cone shaped vessel to hold the material to be dried. The dryer operates under vacuum conditions, which lowers the boiling point of the solvent in the material. This allows for drying at lower temperatures, which is great for heat - sensitive materials.
The double - cone design provides a large surface area for heat transfer, and the rotation of the cone helps in uniform mixing of the material. This ensures that all parts of the material are exposed to the heat evenly, leading to consistent drying.
Why Temperature Control is So Important
Controlling the drying temperature in a Double Cone Vacuum Dryer is vital for several reasons. First off, if the temperature is too high, it can damage heat - sensitive materials. For example, some pharmaceuticals, food products, and certain chemicals can lose their efficacy or quality when exposed to excessive heat.
On the other hand, if the temperature is too low, the drying process will be extremely slow. This not only reduces productivity but also increases energy costs. You want to find that sweet spot where the drying is fast enough to be efficient but gentle enough to preserve the quality of the material.
Factors Affecting Drying Temperature
There are several factors that can affect the drying temperature in a Double Cone Vacuum Dryer. Let's take a look at some of the most important ones.
Material Properties
The type of material you're drying plays a huge role. Different materials have different heat sensitivities and moisture contents. For instance, a material with a high moisture content will require more heat to evaporate the water. But if it's heat - sensitive, you need to be extra careful about how much heat you apply.
Vacuum Level
The vacuum level in the dryer is another key factor. A higher vacuum level lowers the boiling point of the solvent in the material. So, you can achieve drying at a lower temperature. This is great for heat - sensitive materials as you can dry them at a more gentle temperature. But you need to make sure that the vacuum system is working properly to maintain a consistent vacuum level.
Heating Medium
The heating medium used in the dryer also affects the temperature. Common heating mediums include steam, hot water, and thermal oil. Each has its own characteristics. Steam can provide a high amount of heat quickly, but it can be a bit difficult to control the temperature precisely. Hot water is more gentle and easier to control, while thermal oil can reach higher temperatures and is suitable for materials that require more heat.
Methods of Controlling Drying Temperature
Using a Temperature Sensor
One of the most common ways to control the drying temperature is by using a temperature sensor. This sensor is placed inside the dryer to measure the temperature of the material. The data from the sensor is then sent to a control system.
The control system can adjust the flow of the heating medium based on the temperature reading. For example, if the temperature is too high, it can reduce the flow of steam or hot water. If it's too low, it can increase the flow. This way, you can maintain a relatively constant temperature throughout the drying process.
Adjusting the Heating Medium Flow
As mentioned earlier, adjusting the flow of the heating medium is an effective way to control the temperature. You can use valves to regulate the amount of steam, hot water, or thermal oil entering the dryer.
If you're using steam, you can adjust the pressure of the steam supply. A higher steam pressure will provide more heat, while a lower pressure will reduce the heat input. For hot water and thermal oil, you can control the flow rate using a pump.
Monitoring and Controlling the Vacuum Level
Since the vacuum level affects the boiling point of the solvent, monitoring and controlling it is crucial for temperature control. You can use a vacuum gauge to measure the vacuum level inside the dryer.
If the vacuum level drops, the boiling point of the solvent will increase, and you may need to increase the temperature to maintain the drying rate. Conversely, if the vacuum level is too high, you can reduce the temperature slightly.
Tips for Optimal Temperature Control
Pre - testing
Before you start a large - scale drying process, it's a good idea to do some pre - testing with a small sample of the material. This will help you determine the optimal drying temperature and other parameters. You can make adjustments based on the results of the pre - test.
Regular Maintenance
Regular maintenance of the Double Cone Vacuum Dryer is essential for accurate temperature control. Make sure the temperature sensors are working properly, the vacuum system is leak - free, and the heating system is in good condition. A well - maintained dryer will perform better and provide more consistent results.
Operator Training
Your operators should be well - trained in temperature control. They need to understand how to read the temperature sensors, adjust the heating medium flow, and monitor the vacuum level. Proper training can prevent mistakes and ensure that the drying process runs smoothly.
Related Drying Equipment

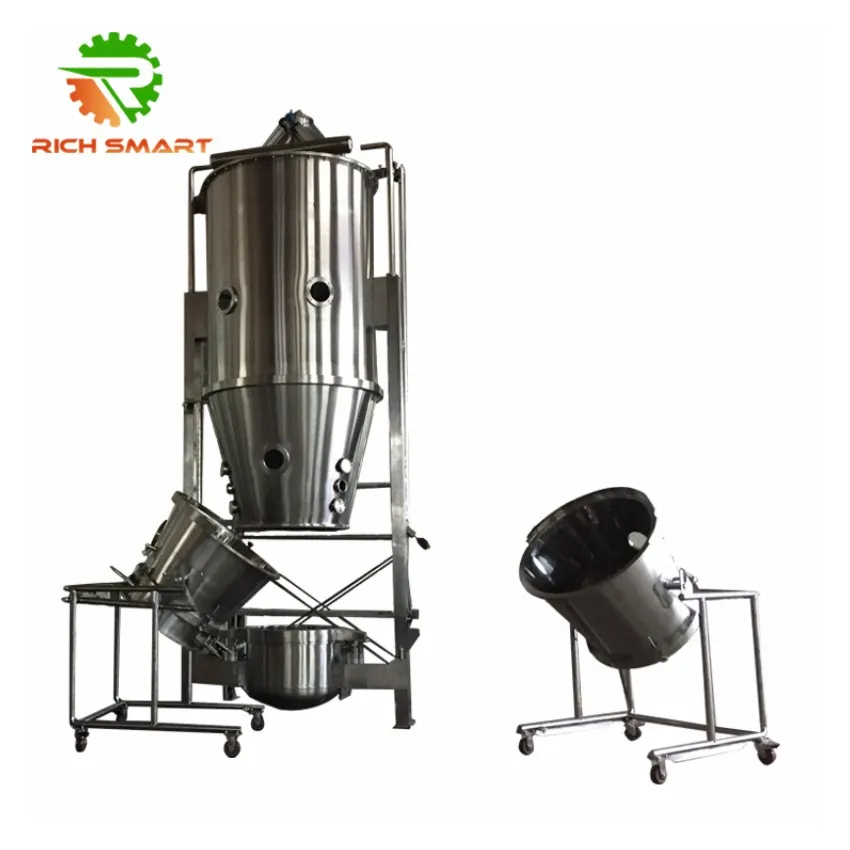

If you're in the market for other types of drying equipment, we also offer some great options. Check out our Closed Loop Spray Dryer, Boilling Fluid Bed Dryer, and Two Fluid Nozzle Spray Dryer. These dryers have their own unique features and can be a great addition to your drying operations.
Conclusion
Controlling the drying temperature in a Double Cone Vacuum Dryer is a complex but achievable task. By understanding the factors that affect temperature, using the right control methods, and following some best practices, you can ensure efficient and high - quality drying of your materials.
If you're interested in purchasing a Double Cone Vacuum Dryer or have any questions about temperature control or other aspects of our dryers, don't hesitate to get in touch. We're here to help you find the best drying solution for your needs.
